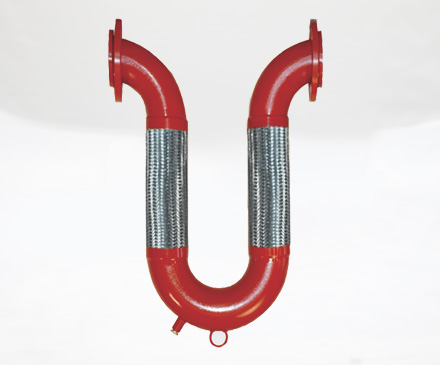

Omega Type Flex Dilatation Expansion Joints
Their assembly is easy and can be handled in a shorter time period
They are flexible and capable of moving in every directions
Absorbs also the thermal movements
Only one support is required
Hoses MaterialsAISI 304,AISI 316L
Braid MaterialsAISI 304
Elbow MaterialsSt37.2
Flange Materials:St37.2
Pressure:PN16
Temperature:550o

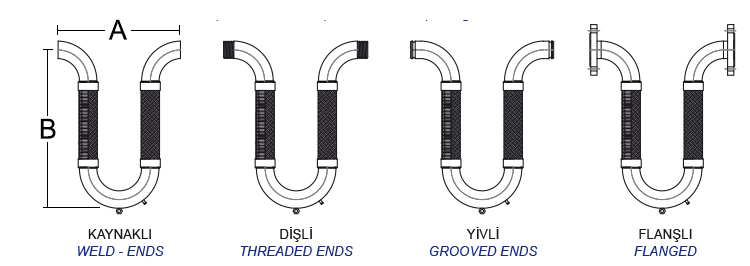

| Nominal Diameter | A (mm) | B (mm) | Movements (All Directions) | |
| DN | In | |||
| 15 | 1⁄4" | 385 | 460 | 100 |
| 20 | 3⁄4" | 390 | 510 | 100 |
| 25 | 1" | 410 | 425 | 100 |
| 32 | 1⁄4" | 425 | 565 | 100 |
| 40 | 1⁄2" | 445 | 585 | 100 |
| 50 | 2" | 510 | 635 | 100 |
| 65 | 21⁄2" | 625 | 660 | 100 |
| 80 | 3" | 660 | 740 | 100 |
| 100 | 4" | 815 | 940 | 100 |
