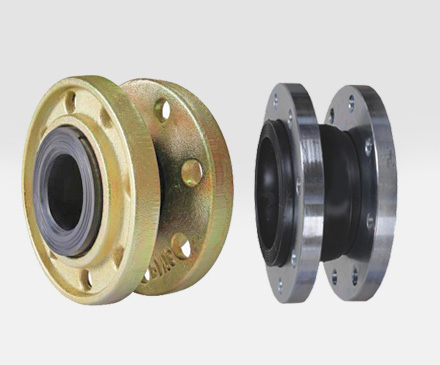

Rubber Expansion Joints

16 bar pressure, 110 °C temperature
ubber bellows is consisted of special rubber, steel wire and reinforced nylon-cord
Good solution for vibration, noise and dilatation problems
Absorption of axial, lateral, angular and transverse movements
Easily installation with its floating flanged.
Joints and seals are not needed.

Specifications

Body Materials:Reinforged Nylon-Cord EPDM/NBR/NR/Viton
Flange Materials:GGG40.3 Ductil Iron, Carbon Steel (Galvanized),Cast Iron

Nominal Diameter Movement (mm) L
DN In Axial Lateral Angular
25 1" 40 (-20:+20) 15 10o 100
32 1 1⁄4" 40 (-20:+20) 15 10o 100
40 1 1⁄2" 40 (-20:+20) 15 10o 100
50 2" 40 (-20:+20) 15 10o 100
65 2 1⁄2" 40 (-20:+20) 15 10o 100
80 3" 40 (-20:+20) 15 10o 100
100 4" 40 (-20:+20) 15 10o 100
125 5" 40 (-20:+20) 15 10o 120
150 6" 40 (-20:+20) 15 10o 120
200 8" 40 (-20:+20) 15 10o 120
250 10" 40 (-20:+20) 15 10o 130
300 12" 40 (-20:+20) 15 10o 130
