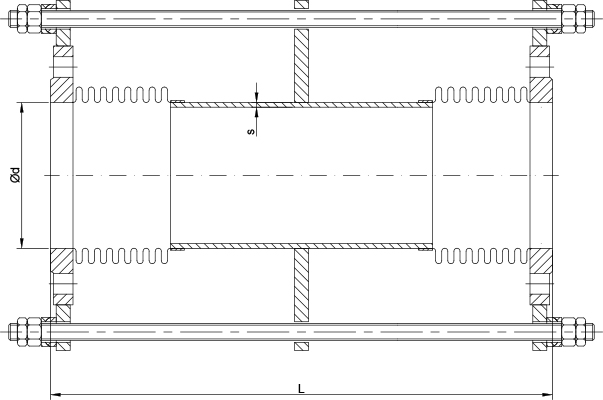

Flanged Universal Type Expansion Joints with Tie Rod
For greater diameters than Ø250 mm, please consult our Technical Department.
Standard connection material is St37 Carbon Steel. According to the requirement, it can be possible to produce stainless steel materials such as AISI 304, AISI 316, AISI 321 or others.
Bellow Materials:AISI304, 316, 316L, 321, 309, 310
Flange Materials:st37-2, AISI304, 316
Pipe Materials:st37-2, AISI304, 316
Limit-Rod Materials:st37-2, AISI304, 316
| Nominal Diameter | Movement (L-mm) | d | s | Operation Pressure | |||||
| DN | In | x | y:±25(50) | y:±50(100) | y:±75(150) | y:±100(200) | |||
| 25 | 1" | 30 | 260 | 360 | 460 | 560 | 33,7 | 2,6 | 16 bar |
| 32 | 1 1⁄4" | 30 | 260 | 360 | 460 | 560 | 42,4 | 3,2 | 16 bar |
| 40 | 1 1⁄2" | 30 | 260 | 360 | 460 | 560 | 48,3 | 3,2 | 16 bar |
| 50 | 2" | 30 | 360 | 460 | 560 | 660 | 60,3 | 3,6 | 16 bar |
| 65 | 2 1⁄2" | 60 | 360 | 460 | 560 | 660 | 76,1 | 3,6 | 16 bar |
| 80 | 3" | 60 | 410 | 510 | 610 | 710 | 88,9 | 4 | 16 bar |
| 100 | 4" | 60 | 410 | 510 | 610 | 710 | 114,3 | 4,5 | 16 bar |
| 125 | 5" | 60 | 460 | 660 | 760 | 860 | 139,7 | 5 | 16 bar |
| 150 | 6" | 60 | 460 | 660 | 760 | 860 | 165 | 5 | 16 bar |
| 200 | 8" | 60 | 510 | 700 | 800 | 900 | 219,1 | 4,5 | 16 bar |
| 250 | 10" | 60 | 600 | 800 | 900 | 1000 | 273 | 5,6 | 16 bar |
