Sprinkler Flaxible Connectors

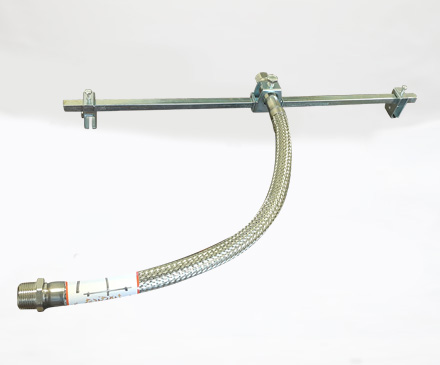

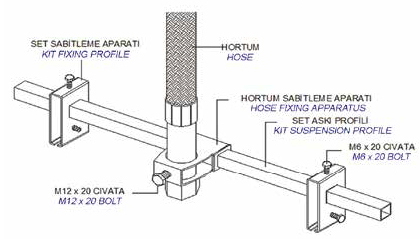

Sprinkler system, when the fire starts to spray water to the blaze automatically and control the fire in fixed place or extinguish. These systems are installed on the ceiling and takes water from the main fire pipeline. Sprinkler system prefered when the area is difficult to reach or in the dangerous place. Sprinkler connection hoses, braided flexible metal hoses that provide the connection between the sprinkler and the fire line which are not affected by seismic or mechanical movements.

Specifications

Hose Material:AISI 316L
Braid Material:AISI 304
Fittings Material:St37.2
Connection:1" Line / 1⁄2" Sprinkler
Hose Diameter:DN20 / DN25
Operating Pressure:16 Bar
Bending Radius:Min. 200 mm

Usage Areas

Malls
Hospitals
Business Center
Schools
Factories
Public Buildings

L (mm)
500 700 1000 1200 1500 1800 2000 2500
